Microlab/FXR

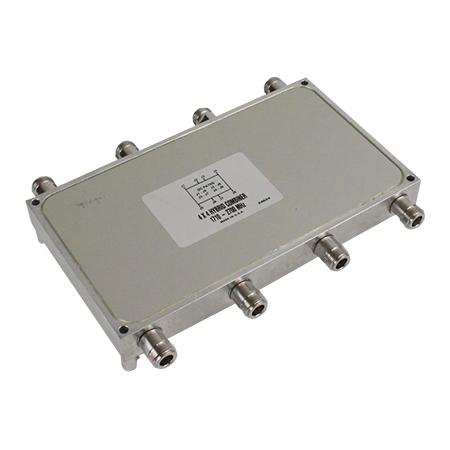

4x4 Hybrid Matrix 694-2700MHz 150W Type N -161dBc
NCNR
TESSCO SKU: 328847
UPC: 328847
QTY/UOM: 1/each
MFG PART #: CM-88N

The 4x4 Hybrid is a matrix of four 3 dB Hybrid Couplers arranged so that signals applied to any of the four inputs will be split equally between the four outputs. This allows simple combining of multiple signals in the same wireless band to a common feeder cable, as might be required in a neutral host in-building distributed antenna system, or the decoupled combining of 4 transmitter or receiver signals equally to 4 antennas. Unused ports must be terminated externally in 50W, with an appropriate PIM performance. Note that the phase relationship of the outputs in these models is not consistent.

Technical Specs
