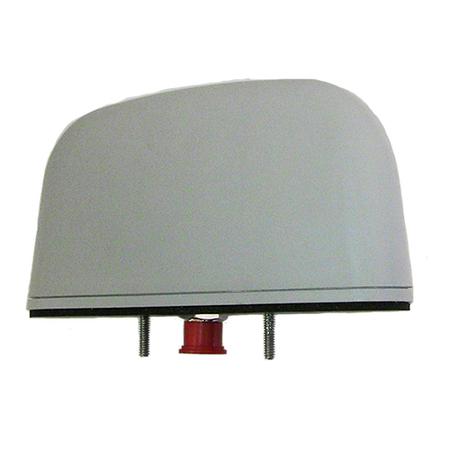

5.725 - 5.85 GHz 13 dBi Bi-Directional Wi-Fi Blade-Style Antenna in Grey

MobileMark's 5.725 - 5.85 GHz 13 dBi bi-directional Wi-Fi blade-style antenna in grey. This BD-5800 antenna is designed for utility cabinets and NEMA boxes. It can be mounted in any setting where a slim profile is desired. It offers outstanding electrical performance as well as a unique mechanical package. It is ground-plane independent and designed to perform on either a fiberglass or metal box with up to a .20-inch thick surface.

The base bolt is attached through a mounting hole that accommodates the Wi-Fi connection. A special gasket preserves the IPx7 water ingress rating when properly mounted. Two 5/8-inch studs at the base of the antenna are attached through seperate mounting holes to help prevent the antenna from rotating on the surface.

Note: This model comes with direct N (Jack) connection.
