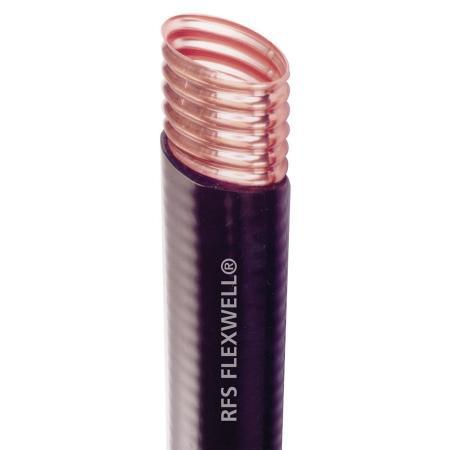

5.9 - 7.125 GHz FLEXWELL® Standard Elliptical Waveguide

RFS Technologies FLEXWELL® 5.9 - 7.125 GHz (4.01 GHz cut-off) standard elliptical waveguide with black polyethylene jacket. It is constructed of longitudinally continuous seam welded, highly conductive copper tube, corrugated and precision formed into an elliptical cross section.

Features:

• Designed for optimal system performance
• Excellent electrical performance with low loss and low VSWR (return loss)
• Electrical test made on every waveguide during manufacturing
• Every waveguide undergoes a 24-hour pressure test
• Flexible design helps reduce installation costs compared to rigid rectangular waveguides
• Eliminates the need for flange joints, twist sections, and bends
• Easy to transport in coils or on drums
• Cutting at exact length and connectorizing in the field

Notes:

• All bulk waveguide needs to be pressurized before shipping
• Add SKU 576827 if ordering cable without attached connectors
