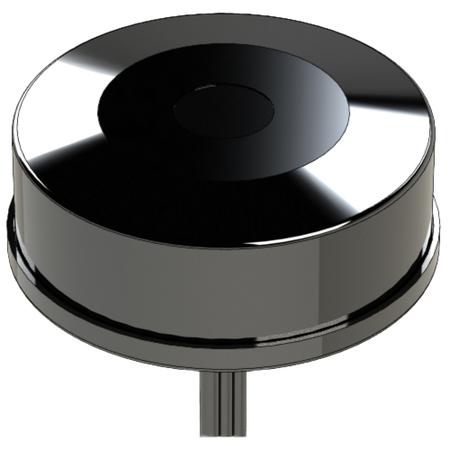

5 Cable Low Profile IoT 5G 4x MIMO and 1x GNSS Antenna

MobileMark's 5-cable antenna with four 5G sub-6 and one GNSS provides MIMO coverage for cellular. In addition, GNSS operates on GPS, Galileo, GLONASS, QZSS or Beidou at 1561, 1575, and 1602 MHz.

The cellular elements provide 4×4 MIMO coverage for dual carriers. With these technical capabilities and low-profile design, the SM is ideal for IoT 5G projects.

Cables 1 - 4 Frequency and Gain: (12-inch LMR®-100 SMA Male)

• 617 - 960 MHz
  • 2 dBi Peak
• 960 - 1710 MHz
  • 2.5 dBi Peak
• 1710 - 7200 MHz
  • 3 dBi Peak

Cable 5 - GNSS operates on GPS, Galileo, GLONASS, QZSS or Beidou at: (12-inch RG174 SMA Male)

• 1561, 1575, and 1602 MHz
