CommScope Technologies LLC

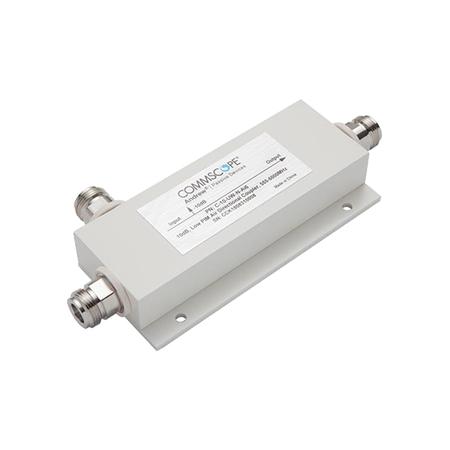

555 – 6000 MHz 10 dB Air Directional Coupler in White, N Female, Trimetal
TESSCO SKU: 216572
UPC: 216572
QTY/UOM: 1/each
MFG PART #: C-10-UW-N-AI6

CommScope's C-10-UW-N-Ai6 555 - 6000 MHz air directional coupler in white. N Female, 50 Ohm, 10 dB. 1 kW peak power, 200 W average power, and 100 W reflected power maximum. VSWR is 1.25:1 at 2700 – 3800 MHz, 1.2:1 at 555 – 2700 MHz, and 1.3:1 at 3800 – 6000 MHz frequency bands. The coupling torque is 4.5 N-m | 39.828 in lb.

This coupler has an operating temperature of -31 degrees F to +185 degrees F with relative humidity up to 100 percent under the ingress protection IEC 60529 2001, IP67 test method.

Used for indoor and outdoor applications. Complaint with RoHS and REACH-SVHC standards. Designed, manufactured and/or distributed under ISO 9001:2015

Technical Specs
