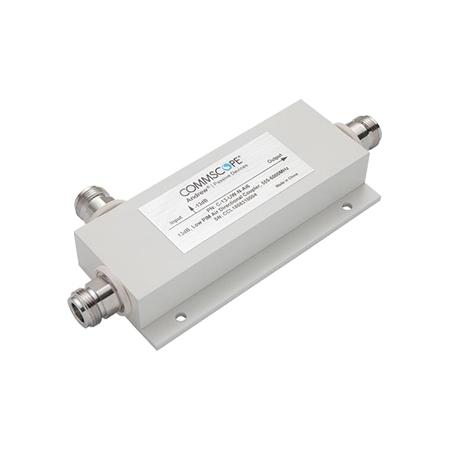

CommScope's C-13-UW-N-Ai6 555 – 6000 MHz air directional coupler in white. N Female, 50 Ohm, 13 dB. 1 kW peak power, 200 W average power, and 200 W reflected power maximum. VSWR is 1.25:1 at 2700 – 3800 MHz, 1.2:1 at 555 - 2700 MHz, and 1.3:1 at 3800 – 6000 MHz frequency bands. The coupling torque is 4.5 N-m for 39.828 in lb.

This coupler has an operating temperature of -31 degrees F to +185 degrees F, with relative humidity up to 100 percent under the ingress protection IEC 60529 2001, IP67 test method.

Used for indoor and outdoor applications. Compliant with RoHS standards and is designed, manufactured and/or distributed under ISO 9001:2015
