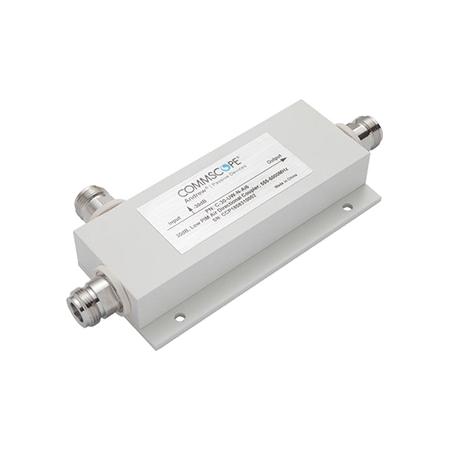

555 – 6000 MHz 30 dB Air Directional Coupler in Silver, N Female, Trimetal

ANDREW an Amphenol company's C-30-UW-N-Ai6 555 - 6000 MHz air directional coupler in silver. N Female, 50 Ohm, 30 dB. 1 kW peak power, 200 W average power, and 200 W reflected power maximum. VSWR is 1.25:1 at 2700 – 3800 MHz, 1.2:1 at 555 – 2700 MHz, and 1.3:1 at 3800 – 6000 MHz frequency bands. The coupling nut proof torque is 4.5 N-m | 39.828 in lb.

This coupler has an operating temperature of -31 degrees F to +185 degrees F with a relative humidity up to 100 percent under the ingress protection IEC 60529:2001, IP67 test method.

Used for indoor and outdoor applications. Meets RoHS standard and is designed and distributed under ISO 9001:2015
