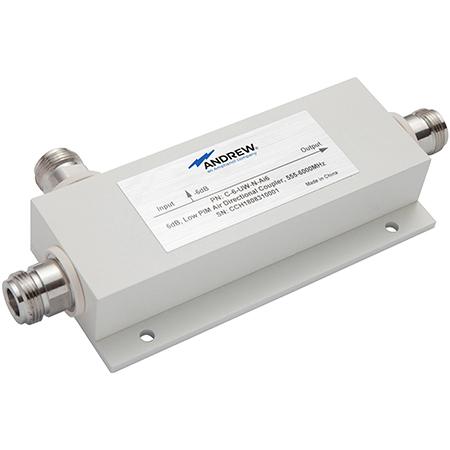

555 - 6000 MHz 6 dB Air Directional Coupler with N Female Connectors, White

ANDREW an Amphenol company's 555 - 6000 MHz air directional coupler with N Female connectors. This is used for indoor and outdoor applications. 50 Ohm, 6 dB. 1 kW peak power, 200 W average power, and 40 W reflected power maximum. VSWR is 1.25:1 at 2700 - 3800 MHz, 1.2:1 at 555 – 2700 MHz, and 1.3:1 at 3800 – 6000 MHz frequency bands. Coupling torque at 4.5 N-m | 39.828 in lb.

It has an operating temperature of -31°F to +185°F with relative humidity up to 100%.

Certification:

• Designed, manufactured and/or distributed under ISO 9001:2015
