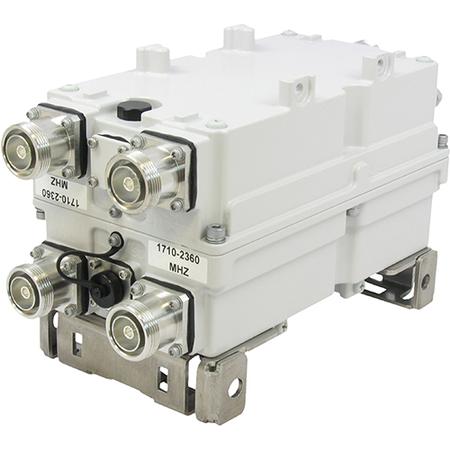

555 - 894, 1695 - 2360 MHz Twin Diplexer in Gray, DC Sense
ANDREW an Amphenol company

555 - 894, 1695 - 2360 MHz Twin Diplexer in Gray, DC Sense

TESSCO SKU: 278037
UPC: 278037
QTY/UOM: 1/each
MFG PART #: CDX623T-DS-T

ANDREW an Amphenol company's 555 - 894, 1695 - 2360 MHz twin diplexer, LOC-top in gray.

Features:

  • Automatic DC switching with DC sense
  • DC redundancy with dummy current sink
  • Integrated layer one converter (AISG modem)
  • Convertible mounting brackets
  • Stackable to single unit or in multiples with included hardware
  • Feeder-to-antenna application

Notes:

  • Mounting:
    • Frame, pole, rack, rod or wall
    • Hardware is included
  • IP67 rated
  • Designed, manufactured and/or distributed under ISO 9001:2015

Technical Specs

Related Media

278037_CDX623T-DS-T _ E15V95P63 Spec Sheet.pdf
