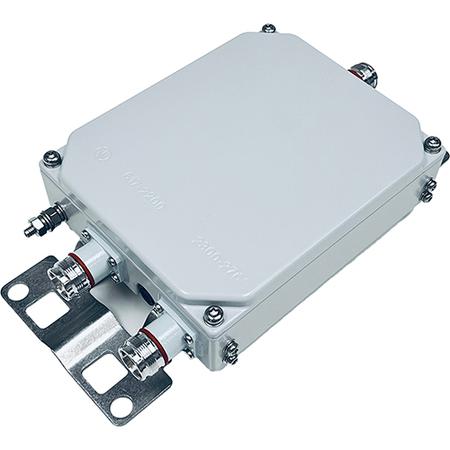

617 - 2180, 2300 - 2700 MHz 200 W Dual Diplexer with 4.3-10 Female Connectors

Microlab's 617 - 2200, 2300 - 2700 MHz dual diplexer with 4.3-10 Female connectors. This diplexer allows combination and separation of the signals in 617 - 2200 MHz and 2300 - 2700 MHz wireless bands. To minimize band inter-reaction, the inputs are well isolated and have minimal insertion loss over their respective frequency bands.

Attention to mechanical design ensures guaranteed low passive intermodulation. The diplexer allows efficient combining or division of the standard cellular bands for use in a small cell, coaxial distributed in-building cellular network or D-RAN.

Features:

• Inject n41(BRS) and WCS in to multiband DAS and Small Cell networks
• Guaranteed low PIM
  • -161 dBc (-118 dBm) minimum
• 50 dB input isolation
• 200 W per port
• IP67 rated
• Minimal RF insertion loss
• RoHS compliant

Dimensions: 6.54 x 5.35 x 3.84 in | Weight: 8.2 lb

Note: Dual mounted configuration for 2x2 MIMO applications is available as this part number BK-693EW.
