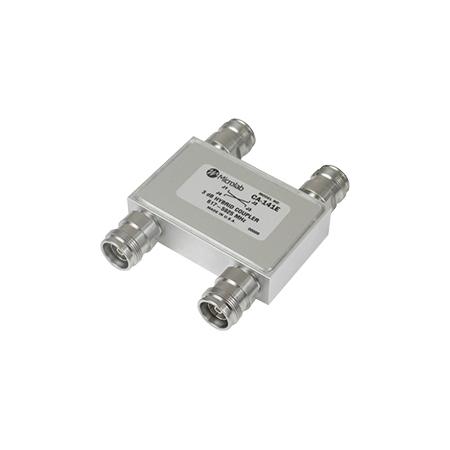

617 – 5925 MHz 100 W Hybrid Coupler with 4.3-10 Female Connectors

Microlab’s hybrid coupler with passivated aluminum housing has been designed for UWB deployments. Deployments that require combining signals in the 617 - 5925 MHz frequency band. It is used to combine two wireless carriers in the operating band to a single antenna feed or distribution cable. This requires terminating one output port and results in a 3 dB loss in each input signal. In situations where two similar feeds are required, both outputs may be used, eliminating the need for a termination and the 3 dB loss.

Features:

• Ultra-wideband to support UWB Small Cell and D-RAN applications
• Guaranteed Low PIM at > -161 dBc (-118 dBm)
• High Isolation and Low VSWR
• 100-Watt per Input Continuous Average Power up to 2.6 GHz

IP67 Rated and meets RoHS compliance.
