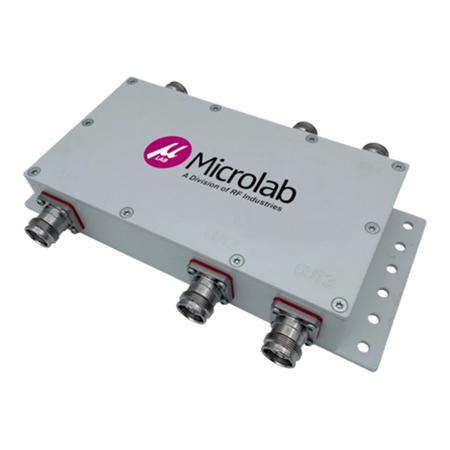

617 - 5925 MHz 3x3 Hybrid Combiner with 4.3-10 Female Connectors

Microlab's gray hybrid combiner has been designed for wideband 5G deployments. The 3x3 hybrid covers an ultra-wide bandwidth of 617 - 5,925 MHz with small size for easier concealment.

It is most commonly used to combine up to three wireless carriers in the operating bands to multiple antenna feeds or distribution cables. Unused input and output ports should be terminated with low PIM loads. VSWR and isolation have been optimized while passive intermodulation (PIM) is minimized.

Features:

• Ultra-wideband for 5G Small Cell and D-RAN applications
• Guaranteed Low PIM
  • -161 dBc (-118 dBm) minimum
    • Test with 2x +43 dBm tones
• High Isolation
• 150-Watt per Input

Notes:

• Input and output 4.3-10 connectors have been separately grouped for convenient connection
• IP67 rated and RoHS compliant
