65G 280 ft Guyed Tower Kit

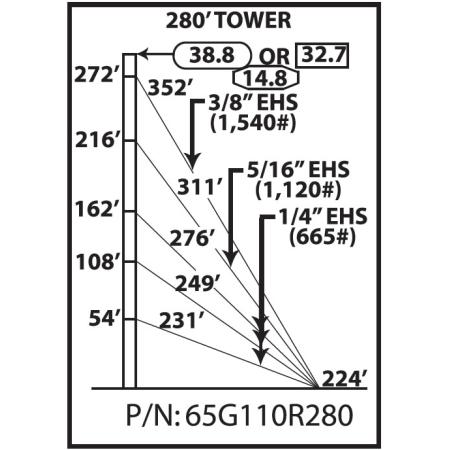

ROHN’s complete guyed tower kits make it easier than ever for you to get everything you need for your next tower installation. The Rohn’s R-65G110R280 280 ft guyed tower kit contains all hardware necessary to construct a complete 280 ft guyed tower suitable for use in areas with 110 mph Rev G / 90 mph Rev F wind speeds. See recommended maximum loadings below. The tower kit includes: BRBROne (1) 10 ft tapered baseBR One (1) 10 ft standard 65G tower sectionBR Thirteen (13) standard 20 ft 65G tower sectionsBR Five (5) guy bracket assemblies with hardwareBR One (1) leg -mounted beacon plate kitBR (1125 ft) 3/8 in EHS guy strandBR (1000 ft) 5/16 in EHS guy strandBR (2450 ft) 1/4 in EHS guy strandBR Six (6) 3/8 in dead-end gripsBR Six (6) 5/16 in dead-end gripsBR Eighteen (18) 1/4 in dead-end gripsBR Six (6) heavy-duty thimbles for 3/8 in guy strandBR Six (6) heavy-duty thimbles for 5/16 in guy strandBR Eighteen (18) heavy-duty thimbles for 1/4 in guy strandBR Fifteen (15) 3/4 in x 12 in eye and jaw turnbucklesBR Three (3) anchor rod assembliesBR One (1) anchor grounding kitBR Three (3) base grounding kitsBR Six (6) grounding lugsBR Three (3) turnbuckle safety cablesBR One (1) pier pin
Geotechnical surveys are always recommended prior to any tower installation. If you would like for TESSCO to recommend a tower for your particular application please fill out and submit a Tower Calculation Request Form. If you choose to purchase a tower from TESSCO (as a kit or in parts) without submitting a Tower Design Questionnaire, you may do so at your own risk.
TESSCO is not responsible for the subsequent success or failure of your tower installation or damages that may result from improper installation or overloading. In other words, if you're not sure which tower you need fill out the Tower Calculation Request Form and we'll help you.
