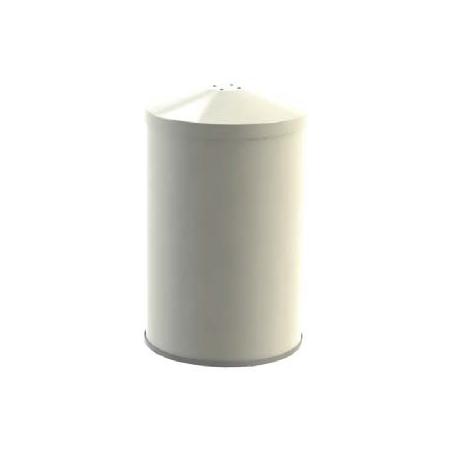

696-960/1695-2700 Tri-Sector Cylindrical Antenna
Outdoor Wireless Networks LLC

696-960/1695-2700 Tri-Sector Cylindrical Antenna

NCNR
TESSCO SKU: 591283
UPC: 591283
QTY/UOM: 1/each
MFG PART #: CUUT070X06F00S0

Amphenol CUUT070X06F00s0 is a tri-band, tri-sector cylindrical antenna ideal for Small Cell/DAS applications. The antenna covers the 696-960/1695-2700/1695-2700 MHz frequency ranges. This antenna features a 120 degree configuration with 18 4.3-10 female connectors located at the bottom of the antenna. Fixed tilt at 0 and 5 degrees for 696-960 MHz and fixed tilt at 0, 2, 4, and 6 degrees at 1695-2700 MHz. Antenna only, mounting hardware not included.

Technical Specs
