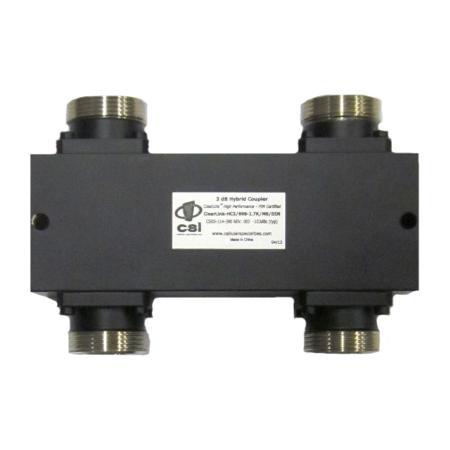

698-2700 MHz ClearLink Low PIM 3dB Hybrid Coupler

  • TESSCO SKU: 579167
  • QTY/UOM: 1 EACH
  • UPC: 729198113308
  • MFG PART #: HC3/698-2.7K/MS/D

CSI 698-2700 MHz 3 dB hybrid coupler. PIM certified. 200 watts. 1.2:1 VSWR. 20dB Directivity. DIN female connectors 5.24" x 1.58" x 0.99".

Related Media

Technical Specs

  • RF Connectors
    7/16 DIN Female
  • Qty/ Uom
    1 Each
  • Item Width
    1.85 in
  • Nominal Coupling
    3 dB
  • Maximum VSWR
    1.20:1
  • Frequency Range
    698-2700 MHz
  • PIM Typical
    -153 dBc
  • Maximum Power
    200 W
  • Temperature Range
    -25-75 deg C
  • Item Height
    1.51 in
  • Directivity
    25 dB
  • Manufacturer
    Westell, Inc.
  • Item Length
    5.24 in
  • Coupled Loss (dB)
    3.2
