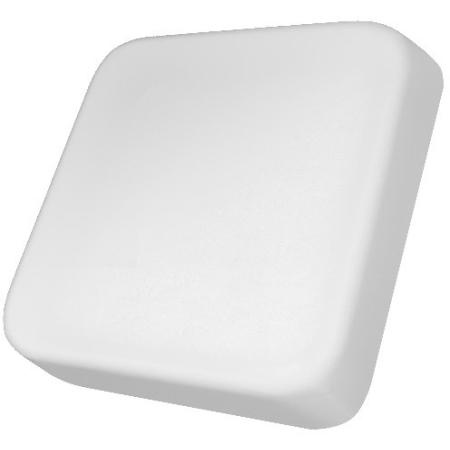

698-2700MHz Dual Slant Directional Antenna

  • TESSCO SKU: 202591
  • QTY/UOM: 1 EACH
  • UPC: 646444962452
  • MFG PART #: MA-WA6927-DS7B

MARS Antennas MA-WA6927-DS7B 698-2700 MHz Dual Slant Directional Antenna with MNT-22 Mount. Mars Dual Slant Antenna covers all the bands for LTE, 3G, 2.5G and 2G Cellular, as well as ISM, WLAN, Bluetooth, GSM 900 and GSM 1900.

Related Media

Technical Specs

  • Manufacturer
    Mars Antennas
  • Polarization
    +/- 45 Degrees
  • Qty/ Uom
    1 Each
  • Item Width
    12.2 in
  • Specific Frequency
    1700-2700 MHz, 698-960 MHz
  • Maximum VSWR
    2.0:1, 1.8:1
  • Item Weight
    .441 lb
  • RF Connectors
    SMA Female
  • Horizontal Beamwidth
    70 deg, 40 deg
  • Lightning Protection
    DC Ground
  • Item Length
    2.64 in
  • Maximum Rated Wind Velocity
    125 mile/h
  • Maximum Power
    10 W
  • Gain dBi
    4 dBi, 7 dBi
  • Minimum Front Back Ratio
    15 dB
  • Item Height
    12.2 in
