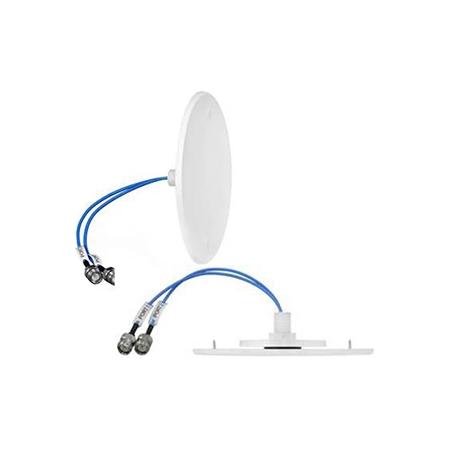

Laird's CFD69716P-30D43F CFD 5G two-port MIMO DAS antenna in white. This antenna extends the current frequency offering up to 7125 MHz to service more of the available 5G frequency bands. The antenna is applicable for environments where aesthetics and wide-angle coverage are necessary for successful wireless deployment.

Their surprisingly small size and ultra-low-profile enables maximum mounting flexibility while maintaining desired in-building aesthetics. CFD 5G series antennas support 698 - 960, 1350 - 1550, 1690 - 4200, and 5150 - 7125 MHz in an ultra-low-profile format that is discrete and unobtrusive. Linear horizontal polarization, 50 Ohm, and 50 W (698 - 4200 MHz) / 10 (5150 - 7125 MHz) maximum power at ambient 25 degrees Celsius. Equipped with a 12 inch cable and 4.3-10 Female connector.

Mounting options include hard and ceiling tile mounting and with or without screw holes for additional security. Meets PC, UL94-V0 radome material specifications and is RoHS compliant.

Applications: Arenas/airports/campuses, Office buildings, Hospitals, Large residential buildings, Hotels and casinos along with Public safety
