Laird External Antennas/TE

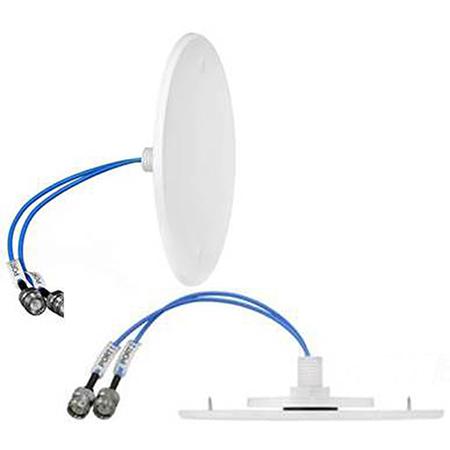

698 - 960,1690 - 4000 MHz 2-port MIMO Hard Ceiling Mount Antenna, 4.3-10 Female
TESSCO SKU: 207118
UPC: 207118
QTY/UOM: 1/each
MFG PART #: CFD69383P1-30D43F

LAIRD's CFD69383P1-30D43F two-port MIMO indoor wideband omnidirectional ultra low profile ceiling mount antenna in white. This antenna is designed to provide pattern coverage optimized for indoor requirements at 698 - 960 MHz and 1690 - 4000 MHz for the LTE, AWS-3, WCS, and CBRS/WiMAX frequency bands.

The small size and low profile enable maximum mounting flexibility while maintaining desired in-building aesthetics. Linear horizontal polarization, 50 Ohm, and 50 W maximum power at ambient 25 degrees Celsius Operates at -30 to +70 degrees Celsius and is equipped with a 12 inch cable and 4.3-10 Female connector.

Hard ceiling mounting. Meets PC, UL94-V0 radome material specifications and is RoHS compliant.

Technical Specs
