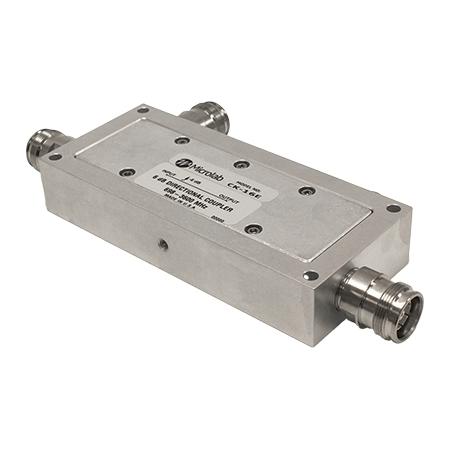

6dB Low PIM Coupler 617-3800MHz 200W 4.30 -10

The CK-10 series of Directional Couplers is a tapered stripline design covering from 617 to 3,800 MHz. Units couple off a defined fraction of signal with minimal reflections or loss. Each model is available as a 4 port coupler.pbr/p The extremely wide frequency range allows use with multiband antennas, leaky cable systems and wireless base stations. With minimal solder joints and a low loss dielectric, the dissipative loss has been minimized and reliability enhanced. Mounting brackets are included.pbr/p Four port directional couplers are available with LC, LD, LE or LN suffix, (e.g. CK-16LN). For outdoor environments add suffix ‘P’ to Model No. (e.g. CK-16NP).
