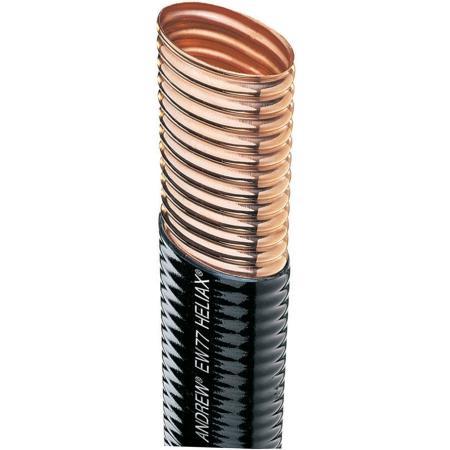

7.125 - 8.5 GHz HELIAX® Standard Elliptical Waveguide
ANDREW an Amphenol company

7.125 - 8.5 GHz HELIAX® Standard Elliptical Waveguide

GSA
NCNR
TESSCO SKU: 483147
UPC: 483147
QTY/UOM: 1/Foot
MFG PART #: EW77

ANDREW an Amphenol company's EW77 5.925 – 7.125 GHz HELIAX® standard elliptical waveguide with black PE jacket.

Dimensions:

  • 1.717 in DIA over jacket (E plane)
  • 1 in DIA over jacket (H plane)
  • 6.297 ft³/kft cable volume

Compliance/Certification:

  • RoHS and REACH-SVHC
  • Designed, manufactured and/or distributed under ISO 9001:2015

Note: Add SKU 485745 if ordering cable without attached connectors.

Related Media

Standard Elliptical Waveguide - EW77 Spec Sheet (PDF)
