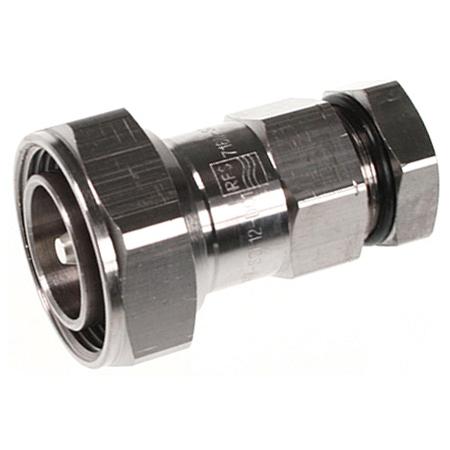

7-16 DIN Male OMNI FIT Premium Straight Connector for 1/2 in Coax Cable SCF12-50
RFS's 716MSCF12D01 7-16 DIN Male OMNI FIT premium straight connector pairs with 1/2 in coaxial cable. This 50 Ohm connector covers 3.7 GHz maximum frequency. The 7-16 connector is the most rugged RF connection meeting all requirements even under the most severe environmental conditions. It features a two-piece design with unique NiTin plating for corrosion resistance.
It is designed to provide the highest quality connector-cable interface while simplifying attachment. This connector features a threaded gasket and 360 degree compression fit for sealing against the outer conductor and jacket.
A multifunctional, self-lubricating High-tech polymer assembly locks on cable corrugation and avoids electrochemical potential. This connector meets RoHS and IP68 standards, ensuring watertight sealing.
Compatible Series: SCF12-50
Cable Type: Foam Dielectric Superflexible
Inner Contact Attachment: Spring Finger
