Westell, Inc.

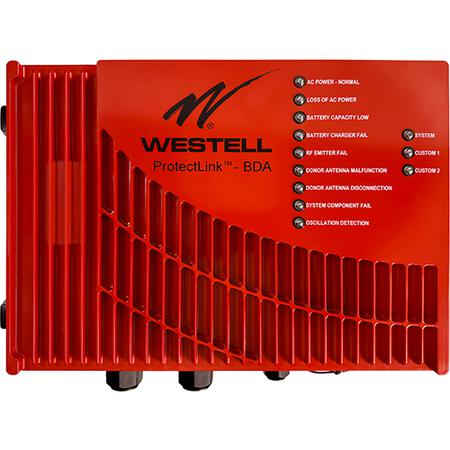

700/800 MHz 0.5 W ProtectLink™ Public Safety BDA, Class A/B
TESSCO SKU: 610768
UPC: 610768
QTY/UOM:
1/each
MFG PART #: CS45-727-827-A0
Sign In or Register
for preferred pricing!
Added To Cart
Westell's ProtectLink public safety next generation BDA. This Class A or Class B BDA includes 700/800 MHz dual-band support, 0.5-Watt output power, and additional auxillary alarms. 12VDC POWERED ONLY.
Features:
- Class B and Class A operation
- 0.5 W downlink RF power per band
- Intelligent oscillation management, self-healing
- 90 dB downlink gain, 80 dB uplink
- Built in front panel annunciator with additional custom LED’s
- Built-in remote annunciator communications link
- Emergency Transmit Disable
- Supports SNMP
- 64 total enabled channels allocated across bands in blocks of 8
- Fast uplink squelch response per filter
- Independent gain control per filter
- Compact footprint
- NEMA4 conduit glands included
- Supports both digital and analog modulation
- Supports P25 phase 1 and 2
- P25 phase 2 AGC (Automatic Gain Control) per time slot to address near/far users on the same channel
- REQUIRES THE USE OF CS19-BBU-004 BATTERY BACKUP TO SUPPLY 12VDC POWER. BBU SOLD SEPARATELY OR COMBINED IN A KIT WITH THE BDA)
