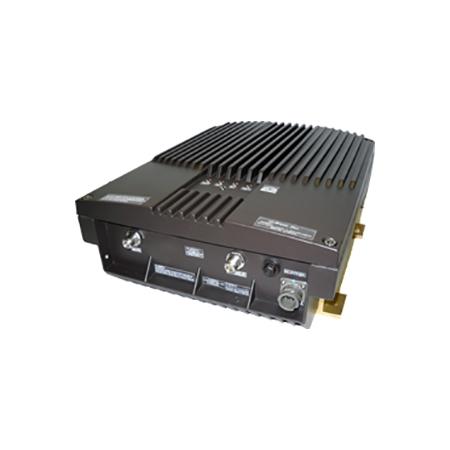

700/800 MHz Public safety BDA with 40 dB Rejection

  • TESSCO SKU: 585048
  • QTY/UOM: 1 EACH
  • UPC: 729198675028
  • MFG PART #: PS7PS8NEPSN252580

700/800PS BDA with Public Safety with 40 dB Rejection of the new SMR band. +25 dBm UL / +25 dBm DL 80 dB Gain , "C"

Technical Specs

  • Gain Adjustment Range (dB)
    0 to 30 in 2dB steps
  • Gain
    80 dB
  • Qty/ Uom
    1 Each
  • Manufacturer
    G-Wave
  • Composite Power Downlink
    +25 dBm
  • Bands Supported
    700 PS, 800 SMR/PS
  • RF Connectors
    N Female
  • Uplink Frequencies
    793-816 MHz
  • Item Weight
    35 lb
  • Item Length
    18.1 in
  • Downlink Frequencies
    763-775 MHz, 851-861 MHz
  • Item Height
    6.7 in
  • Composite Power Uplink
    +25 dBm
  • Item Width
    12.6 in
