700 MHz Lower B/C Block 735 - 746, 704 - 716 MHz Duplexer
Microlab/FXR

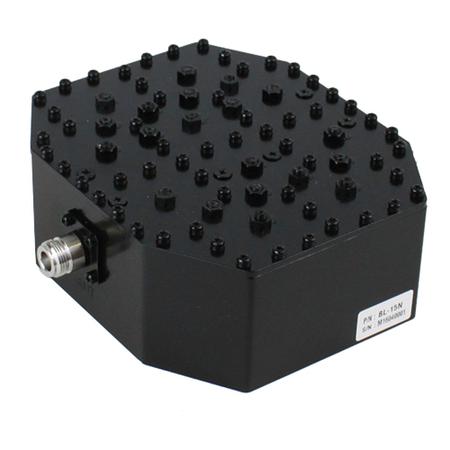

700 MHz Lower B/C Block 735 - 746, 704 - 716 MHz Duplexer

NCNR
TESSCO SKU: 568147
UPC: 568147
QTY/UOM: 1/each
MFG PART #: BL-15N

Microlab's 735 - 746, 704 - 716 MHz duplexer. This BL-15 series allows combination and separation of the TX and RX signals in a duplex 700 MHz band lower B/C Block signal. Units provide high isolation and low insertion loss.

Features:

  • Passbands:
    • TX: 734 - 746 MHz
    • RX: 704 - 716 MHz
  • <-153 dBc specified PIM
  • Low insertion loss
  • High reliability
  • RoHS compliant
  • N connectors

Technical Specs

Related Media

568147_BL-15N_Spec Sheet.pdf
