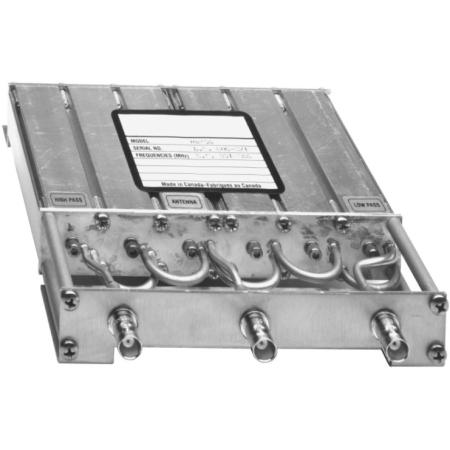

746-806 MHz 6 Cavity Mobile Duplexer, N Female

  • TESSCO SKU: 505985
  • QTY/UOM: 1 EACH
  • UPC: 729198795375
  • MFG PART #: MR456N-2-1

The Sinclair MR456N-2-1 746-806 MHz 6 Cavity Mobile Duplexer with N Female. This compact duplexer is fabricated from lightweight, rugged aluminum extrusion, which affords maximum structural integrity. Carefully temperature-compensated resonators are designed to minimize variations due to changing operating environments. This duplexer provides superior performance for trunking and conventional applications, and may also be used as low-power base station duplexers.

Technical Specs

  • Manufacturer
    Sinclair Technologies
  • Insertion Loss (Tx/Ant-dB)
    1
  • Item Height
    1.31 in
  • Minimum Separation
    30 MHz
  • Minimum Isolation
    75 dB
  • Item Length
    1.31 in
  • Qty/ Uom
    1 Each
  • Finish
    Chromate conversion
  • Tuning Method
    TESSCO or Field Tune
  • Item Width
    6.25 in
  • Maximum Power Input
    50 W
  • Frequency Range
    746-806 MHz
  • Insertion Loss (Rx/Ant-dB)
    1
  • Operating Temperature Range
    -30-60 deg C
  • Number of Cavities
    6
  • Maximum VSWR
    1.5:1
  • RF Connectors
    N Female
