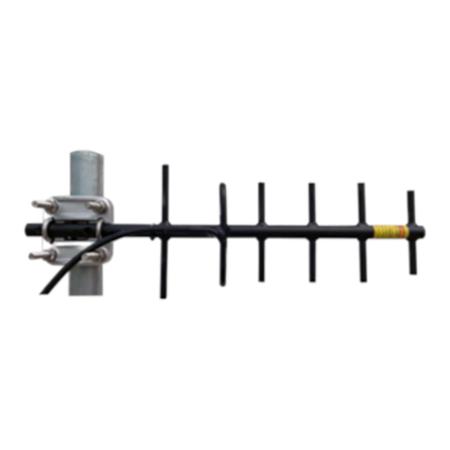

760 - 870 MHz 9 dBi 6 Element Fully Welded Yagi Antenna with N Female Connector

E/M Wave's UHF GMRS 760 - 870 MHz 9 dBi 6 element fully welded Yagi antenna. This Yagi antenna is equipped with an N Female connector.

Specifictions:

• <1.5:1 VSWR
• 50 Ohm
• 250-Watt power rating
• -40°C to +85°C operating temperature

Features:

• Fully welded aluminum construction
• UV and environmentally resistant black powder coat finish
• 3/4-inch 6063 aluminum boom
• 3/8-inch 6061 aluminum, solid rod radiators
• Vertical or horizontal polarization mountable
• Integrated low loss feeder cable

Dimensions: 22.8 x 7.75 x 2.95 in | Weight: 49.6 oz

Note: The mounting hardware is included and this antenna has an acceptable mast diameter of up to 1.75-inch (45 mm) (1.25-inch Pipe).
