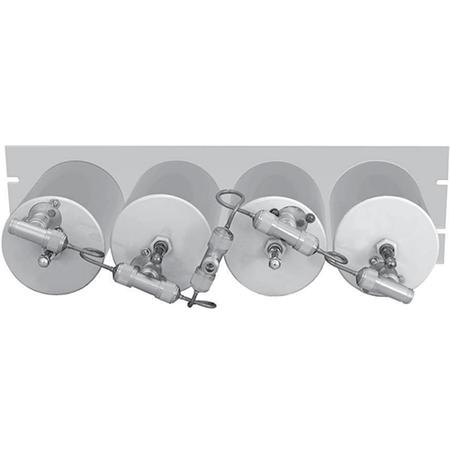

763 - 869 MHz Pass-Reject Base Station Duplexer

Telewave's pass-reject base station duplexer. This duplexer provides high performance and high reliability for the 760 or 860 MHz Public Safety and trunking bands. It can be easily reconfigured for transition from one band to the other.

It has two (2) pass-reject cavities in each transmitter and receiver path. These paths provide maximum TX to RX protection in dense RF environments. Mil-Spec semi-rigid cable is used for all interconnections to ensure long life.

Dimensions: (H x W x D) 5.25 x 19 x 10.5 in | Weight: (Net) 21 lb

Note:

• It mounts on a 19-inch standard rack with a 5.25-inch panel height
• Specify exact transmitter and receiver frequencies when ordering
