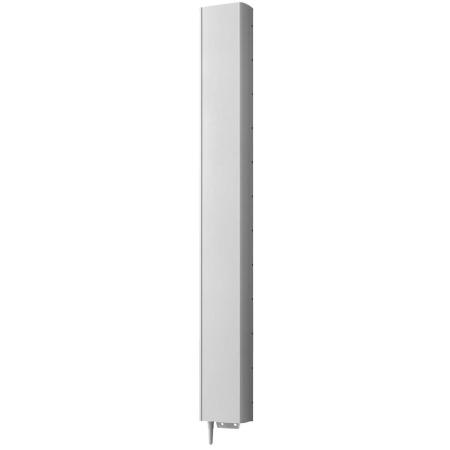

790-960 MHz X-pol Directional Antenna

  • TESSCO SKU: 398941
  • QTY/UOM: 1 EACH
  • UPC: 888063989414
  • MFG PART #: 800 10309V01

KATHREIN 790-960 MHz X-polarized, 85 deg directional antenna. 0-10 deg electrical tilt. 2 x 7/16 DIN female connectors. Includes mounting kit for 2-4.6" OD mast

Technical Specs

  • Manufacturer
    Kathrein USA Inc.
  • Type of Jumper Included
    None
  • Maximum VSWR
    1.5:1
  • Item Weight
    25.4 lb
  • Jumper Included
    No
  • Qty/ Uom
    1 Each
  • Gain dBi
    14.8 dBi, 14.9 dBi, 14.8 dBi
  • Item Length
    76.1 in
  • RF Connectors
    7/16 DIN Female
  • Specific Frequency
    824-894 MHz, 880-960 MHz, 790-862 MHz
  • Connector Placement
    Bottom
  • Maximum Rated Wind Velocity
    120 mile/h
  • Polarization
    +/- 45 Degrees
  • Electrical Downtilt
    Variable
  • Horizontal Beamwidth
    85 deg, 83 deg
  • Type of Hardware Included
    Not Specified
  • Variable Electrical Downtilt
    0-10 deg
  • Minimum Front Back Ratio
    24 dB
  • Item Width
    10.2 in
  • Gain dBd
    12.65 dBd, 12.75 dBd, 12.65 dBd
  • Maximum Power
    400 W
  • Item Height
    3.9 in
