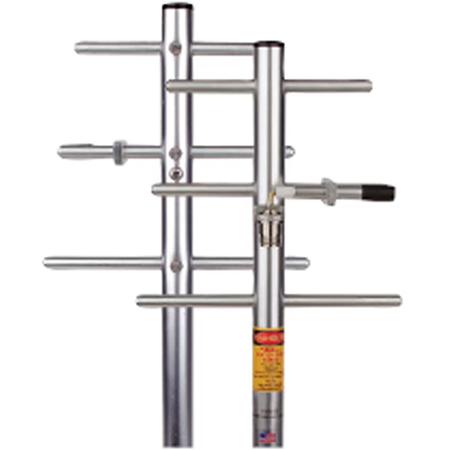

806-896 MHz 6dB 3 Element Yagi Antenna

  • TESSCO SKU: 57360
  • QTY/UOM: 1 EACH
  • UPC: 806326710483
  • MFG PART #: YS8063

Laird YS8063 yagi antenna is part of Laird Technologies Silver Series VHF models. The Silver Series feature the same great optimized designs and plated brass connectors as the welded gold-anodized models. The YS8063 operates in the 806 - 896 MHz frequency range. The yagi is 3-elements with 6dBd gain and a maximum power input of 300 watts. The antenna is terminated with an N Female connector and includes U-bolts for mounting.

The broad bandwidth (806 - 896 MHz) of this 3-element antenna makes gain performance more consistent throughout the frequency range.

Technical Specs

  • Jumper Included
    No
  • Qty/ Uom
    1 Each
  • Item Weight
    3 lb
  • Horizontal Beamwidth
    72 deg
  • Manufacturer
    Laird Connectivity, Inc.
  • Gain dBd
    6 dBd
  • Item Length
    16.75 in
  • Lightning Protection
    DC Ground
  • RF Connectors
    N Female
  • Tuned Frequency (MHz)
    N/A
  • Gain dBi
    8.15 dBi
  • Connector Placement
    Bottom
  • Polarization
    Linear
  • Type of Hardware Included
    U-Bolts
  • Vertical Beamwidth
    57 deg
  • Maximum VSWR
    1.5:1
  • Maximum Power
    300 W
  • Specific Frequency
    806-896 MHz
  • Maximum Rated Wind Velocity
    100 mile/h
