Sinclair Technologies GSA

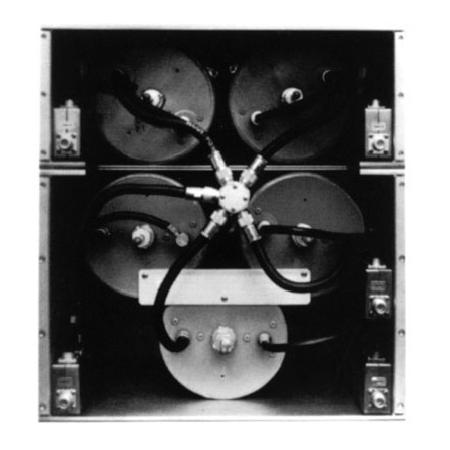

806-960 MHz 2 Channel Combiner

  • TESSCO SKU: 15771
  • QTY/UOM: 1 EACH
  • UPC:
  • MFG PART #: TJ4232

SINCLAIR 806-960 Two Channel Combiner. Cavity-ferrite type. Dual isolator. 70 dB isolation. 125W/ch. N/f. *Factory tune-Have PM set up sku

Technical Specs

  • Minimum Isolation
    70 dB
  • Operating Temperature Range
    -30-60 deg C
  • Cavity Type
    3/4 Wave
  • Electrical Combiner Type
    Cavity
  • Channel Separation
    0.25 MHz
  • Item Height
    7 in
  • Qty/ Uom
    1 Each
  • Item Width
    19 in
  • Frequency Range
    806-960 MHz
  • Power Per Channel
    125 W
  • RF Connectors
    N Female
  • Item Length
    18.5 in
  • Maximum VSWR
    1.25:1
  • Number of Channels
    2
  • Manufacturer
    Sinclair Technologies
  • Isolator Type
    Dual
  • Tuning Method
    Factory Tune
