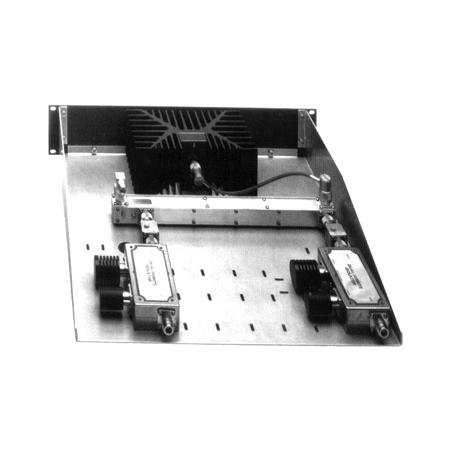

806-960 MHz 4 Channel Combiner, Hybrid Ferrite

  • TESSCO SKU: 17977
  • QTY/UOM: 1 EACH
  • UPC:
  • MFG PART #: TC4214

SINCLAIR 806-960 MHz Transmit Combiner. Four channel. Hybrid-ferrite type. Dual stage. 10 MHz max. sep. 125W. N/f. *Factory tune

Technical Specs

  • Minimum Isolation
    80 dB
  • Operating Temperature Range
    -30-60 deg C
  • Electrical Combiner Type
    Hybrid
  • Channel Separation
    0 MHz
  • Item Height
    3.5 in
  • Qty/ Uom
    1 Each
  • Item Width
    19 in
  • Frequency Range
    806-960 MHz
  • Power Per Channel
    125 W
  • RF Connectors
    N Female
  • Item Length
    15.63 in
  • Maximum VSWR
    1.25:1
  • Number of Channels
    4
  • Manufacturer
    Sinclair Technologies
  • Isolator Type
    Dual
  • Tuning Method
    Factory Tune
