806-960 MHz 5 Channel Combiner, NF
Sinclair Technologies
806-960 MHz 5 Channel Combiner, NF
NCNR
TESSCO SKU: 543208
UPC: 543208
QTY/UOM: 1/each
MFG PART #: TJ4235

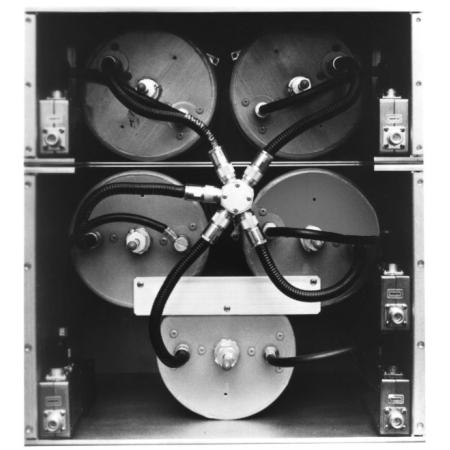

SINCLAIR TECHNOLOGIES' TJ4235 five channel cavity ferrite transmitter combiner for use in systems from 806 – 960 MHz. Each channel on these combiners includes a dual-stage isolator and Sinclair Technologies-developed very high "Q" bandpass three-quarter wavelength cavity filter. It is a 19 in rack mountable and retuned in the field with simple test equipment. It features N Female input and output connectors.
