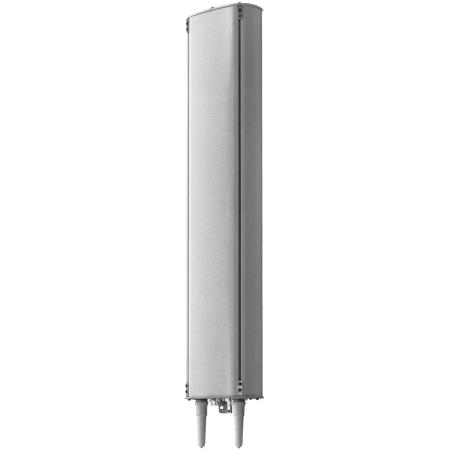

824-2170 MHz 10.5-14dB Broadband Panel Antenna

  • TESSCO SKU: 343155
  • QTY/UOM: 1 EACH
  • UPC: 888063431555
  • MFG PART #: 800 10121V01

KATHREIN 824-2170 Broadband Panel Antenna. 88 deg. horizontal pattern, 10.5-14dB gain. (4 - Din Female con.) Order mount separately.

Technical Specs

  • Type of Jumper Included
    None
  • Type of Hardware Included
    Not Specified
  • Jumper Included
    No
  • Gain dBi
    15.3 dBi, 16 dBi, 16 dBi, 16.2 dBi, 13.5 dBi, 13.4 dBi, 13.1 dBi
  • Connector Placement
    Bottom
  • Maximum VSWR
    1.5:1
  • Item Width
    10.3 in
  • RF Connectors
    7/16 DIN Female
  • Maximum Rated Wind Velocity
    120 mile/h
  • Horizontal Beamwidth
    88 deg
  • Variable Electrical Downtilt
    0.5-12.5 deg, 0.5-10 deg
  • Maximum Power
    500 W, 500 W, 250 W, 250 W, 250 W, 500 W
  • Manufacturer
    Kathrein USA Inc.
  • Item Height
    5.9 in
  • Item Weight
    46.3 lb
  • Item Length
    54.5 in
  • Polarization
    +/- 45 Degrees
  • Qty/ Uom
    1 Each
  • Specific Frequency
    790-862 MHz, 824-894 MHz, 880-960 MHz, 1710-1880 MHz, 1850-1990 MHz, 1920-2180 MHz
  • Gain dBd
    10.95 dBd, 11.25 dBd, 11.35 dBd, 14.05 dBd, 13.85 dBd, 13.85 dBd, 13.15 dBd
  • Electrical Downtilt
    Variable
  • Minimum Front Back Ratio
    23 dB
