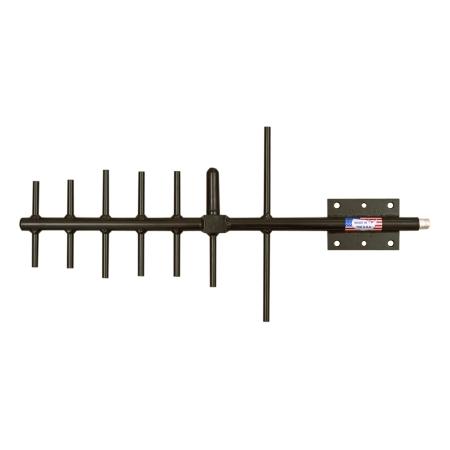

824 - 896 MHz 10 dBd 7 Element Yagi Antenna with N Female Connector

Telewave's 824 - 896 MHz 7 element Yagi antenna with N Female connector. This ANT850Y10-WR is a high-performance directional antenna, designed especially for point-to-point as well as point / multipoint applications. It produces 10 dBd forward gain with an excellent front-to-back ratio. Solid aluminum elements with 360° welds prevent intermodulation and provide exceptional strength.

Each antenna is completely protected with Telewave's high-tech Txylan™ coating, which provides icing resistance and protection from corrosive gases, UV radiation, salt spray, acid rain, and wind-blown sand. The feed line is protected within the boom and the radiating element is completely sealed against ice and other hazards with a tough RF-transparent radome.

Includes:

• A welded vertical plate and mast clamp set
  • A horizontal welded plate is optional, or the ANTM940H adapter can be used
  • The clamp set fits any vertical mast or tower support from 1.0 - 2.5-inch O.D.

Note: For installations on angled supports, the universal mount option deletes the welded clamp providing three separate planes of rotation and almost any required orientation. The “U” mount attaches to virtually all supports up to 3.5-inches in diameter and can be adapted to flat surfaces and utility poles.
