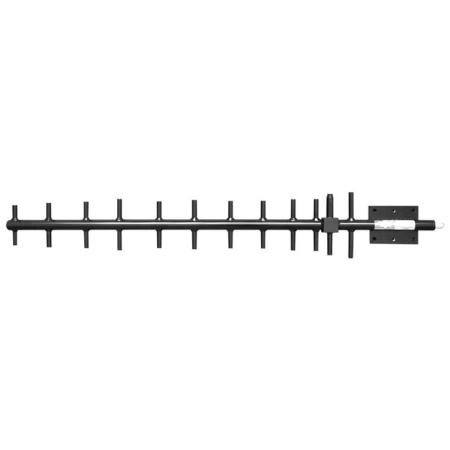

880 - 960 MHz 14.3 dBi 12 Element Yagi Antenna with N Female Connector

Telewave's 880 - 960 MHz Yagi antenna with N Female connector. This is a directional antenna with reduced sidelobes and very high front-to-back ratio. Twelve (12) elements provide a minimum of 12.2 dBd (14.3 dBi) forward gain and coverage of the entire 900 MHz commercial band. The boom and elements are solid 360° welded aluminum to prevent intermodulation and provide exceptional strength.

All antenna components are completely protected with Telewave’s high-tech Txylan™ coating. This coating seals the antenna against corrosive gases, UV radiation, salt spray, acid rain, and wind-blown sand in desert environments. The active element and feed line are sealed within the antenna.

Notes:

• The universal mount deletes the welded clamp, providing three (3) separate planes of rotation and almost any required orientation
• The “U” mount attaches to virtually all supports up to 3.5-inch diameter and can be adapted to flat surfaces and utility poles
