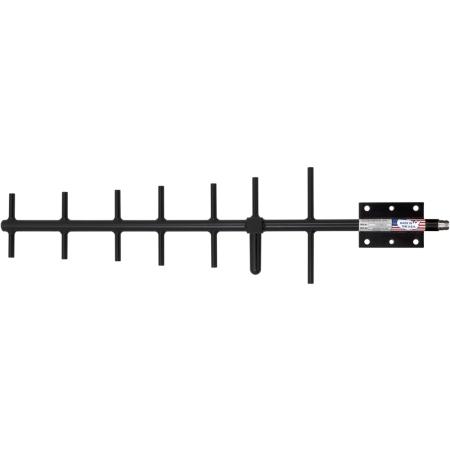

885 - 975 MHz 10.5 dBd 7 Element Yagi Antenna with N Female Connector

Telewave's 885 - 975 MHz Yagi antenna with N Female connector. This ANT930Y10-WR Yagi is a high-performance directional antenna, designed especially for point-to-point as well as point / multipoint control applications. Seven elements provide a minimum of 10.5 dBd (12.6 dBi) forward gain, excellent front-to-back performance, and coverage of the entire 900 MHz commercial band. The boom and elements are solid 360° welded aluminum to prevent intermodulation and provide exceptional strength.

Each antenna is completely protected with Telewave's high-tech Txylan™ coating, which provides icing resistance and protection from corrosive gases, UV radiation, salt spray, acid rain, and wind-blown sand. The feed line is protected within the boom and the radiating element is completely sealed against ice and other hazards with a tough RF-transparent radome.

Includes:

• A welded vertical plate and mast clamp set
  • A horizontal welded plate is optional, or the ANTM940H adapter can be used
  • The clamp set fits any vertical mast or tower support from 1.0 - 2.5-inch O.D.

Note: For installations on angled supports, the universal mount option deletes the welded clamp providing three separate planes of rotation and almost any required orientation. The “U” mount attaches to virtually all supports up to 3.5-inches in diameter and can be adapted to flat surfaces and utility poles.
