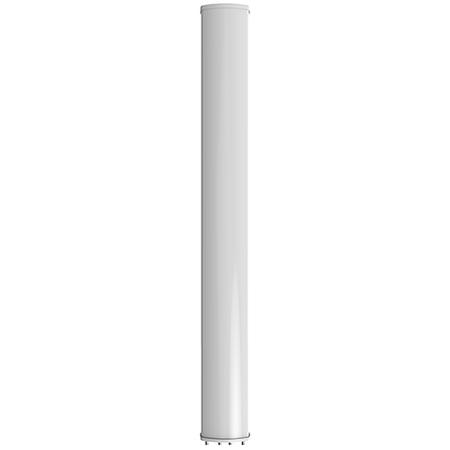

8x 1710 - 2690 MHz Outdoor Sector Antenna with 8x 4.3-10 Female Connectors, 65 Deg HPBW

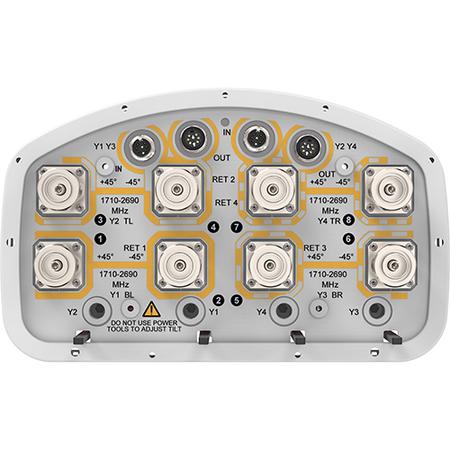

ANDREW an Amphenol company’s outdoor 8-port single-band sector antenna. This light gray (RAL 7035) antenna is equipped with eight 4.3-10 Female connectors located on the bottom. It employs state-of-the-art ultra wideband technology providing excellent RF performance in all bands.

Specifications:

• 8x 1710 - 2690 MHz frequency range
• 65 Deg HPBW
• Fiberglass, UV resistant radome
• Aluminum reflector

Features:

• Integrated Internal Remote Electrical Tilt (RET), with independent control of electrical tilt with manual override on all arrays
• Wind Loading
  • Frontal / Lateral / Rear – 439 / 372 / 445 N at 150km/h

Includes:

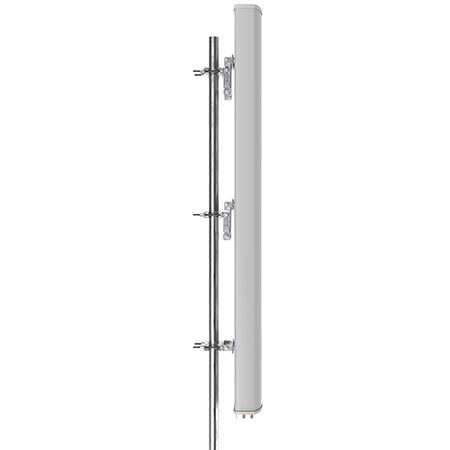

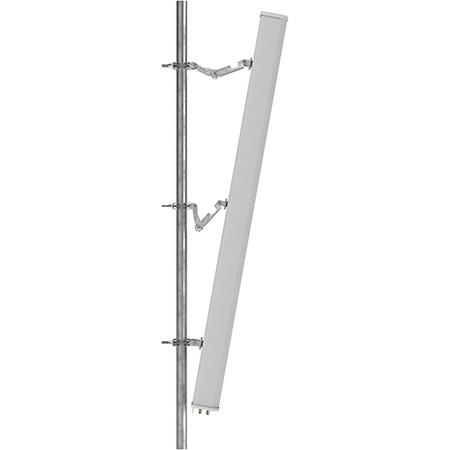

• Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor top and one bottom bracket set
• Middle Downtilt Mounting Kit for Long Antennas for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor bracket set

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015
