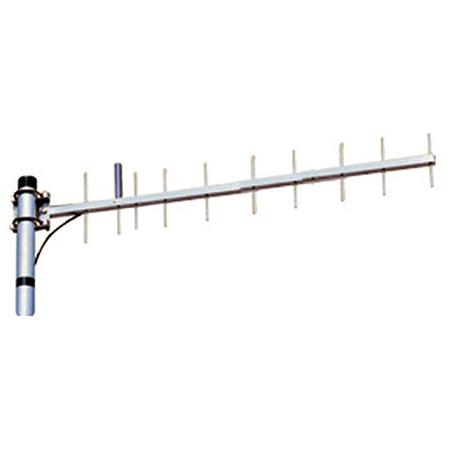

928-960MHz 12dB 10 Element Yagi Antenna

  • TESSCO SKU: 19040
  • QTY/UOM: 1 EACH
  • UPC: PC9010N
  • MFG PART #: PC9010N

LAIRD 928-960 MHz 10 element yagi. 12 dB gain, 200 watts. All welded con- struction. Includes jumper with N female termination and mounting hardware.

Technical Specs

  • Type of Jumper Included
    8" Pigtail w/ N Female
  • Vertical Beamwidth
    40 deg
  • Maximum VSWR
    1.5:1
  • Polarization
    Linear
  • Type of Hardware Included
    U-Bolts
  • Connector Placement
    Pigtail
  • Manufacturer
    Laird Connectivity, Inc.
  • Tuned Frequency (MHz)
    N/A
  • Specific Frequency
    928-960 MHz
  • Maximum Rated Wind Velocity
    125 mile/h
  • Lightning Protection
    DC Ground
  • RF Connectors
    N Female
  • Gain dBd
    12 dBd
  • Qty/ Uom
    1 Each
  • Horizontal Beamwidth
    45 deg
  • Gain dBi
    14.15 dBi
  • Jumper Included
    Yes
  • Item Weight
    2.31 lb
  • Item Length
    41.44 in
  • Maximum Power
    200 W
