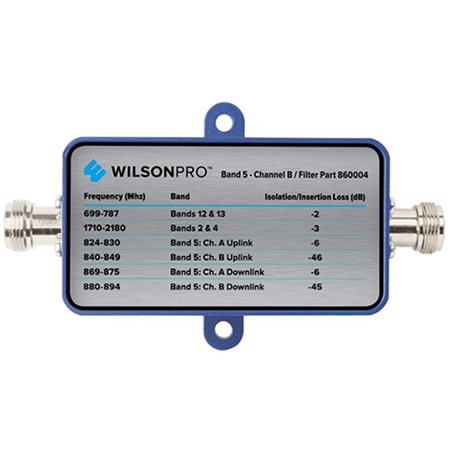

Band 5 Channel B Filter with N Female Connectors

Wilson Electronics WilsonPro Band 5 Channel B filter with N Female connectors. This is designed to provide maximum attenuation for Channel B, Band 5, and allows other channels to pass through with minimal attenuation.

Impedance:

• 50 Ohm

Frequency and Isolation/Insertion Loss (dB):

• Bands 12 and 13, 699 - 787 MHz and -2 dB
• Bands 2 and 4, 1710 - 2180 MHz and -3 dB
• Band 5: Channel A Uplink, 824 - 830 MHz and -6 dB
• Band 5: Channel B Uplink, 840 - 849 MHz and -46 dB
• Band 5: Channel A Downlink, 869 - 875 MHz and -6 dB
• Band 5: Channel B Downlink, 880 - 894 MHz and -45  dB
