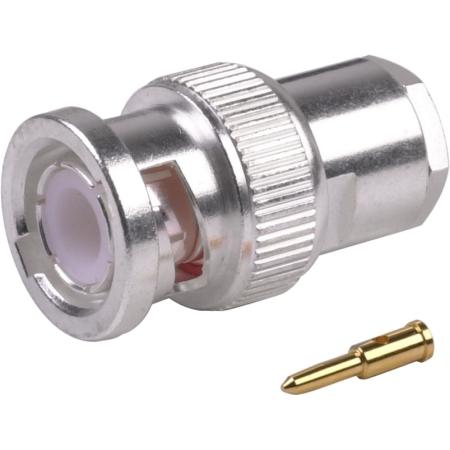

BNC Male-RG58,RG141

  • TESSCO SKU: 11242
  • QTY/UOM: 1 EACH
  • UPC: 729198112424
  • MFG PART #: RFB-1100-2ST

RF INDUSTRIES BNC male connector for RG58/U, RG58A/U, RG141 and Ultralink cable. Silver plated body, gold pin. Solder center pin, clamp on braid.

Technical Specs

  • Manufacturer
    RF Industries
  • Connection (Note)
    Can crimp pin .068
  • Center Pin Type
    Solder
  • Strip Insulation to End
    0.125
  • Strip Jacket to End
    0.375
  • Install
    60981(1),88701(2)
  • RF Impedance
    50 Ohms
  • Pieces/UG
    UG88
  • For Cable
    RG58/U, 58A/U, 141, Ultralink
  • Insulator Material
    PTFE
  • Strip Shield to End
    0.000
  • RF Connector
    BNC Male
  • RF Connector Body Style
    Straight
  • Max Voltage/Pwr
    500 Vrms
  • Qty/ Uom
    1 Each
  • Material (Pin)
    Gold
  • Frequency Range
    0-4 GHz
