PolyPhaser

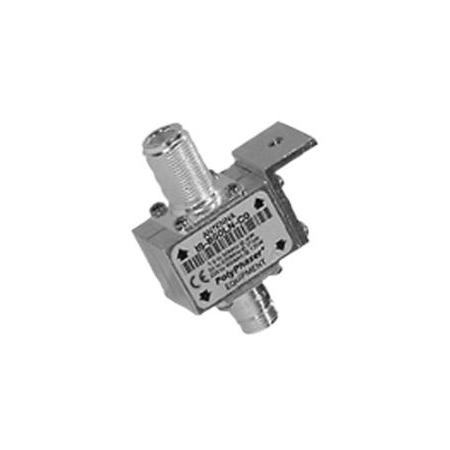

Bulkhead Arrestor, N/F 10MHz to 1GHz

  • TESSCO SKU: 15577
  • QTY/UOM: 1 EACH
  • UPC: 729198155773
  • MFG PART #: IS-B50LN-C0

PolyPhaser IS-B50LN-C0 10MHz TO 1GHz DC Blocked Protector. Bulkhead mount, single transmitter coaxial lightning protection for 10 MHz to 1 GHz with N female surge side and N female protected side connectors.

Related Media

Technical Specs

  • Surge Side Connector
    N Female
  • Qty/ Uom
    1 Each
  • Frequency Range
    10-1000 MHz
  • Maximum Throughput Energy
    10 mJ
  • Compliance Standards
    CE
  • Protected Side Connector
    N Female
  • Motorola Part
    DQISB50LNC0
  • Mount Type
    Bulkhead and Flange
  • Description
    10MHz TO 1GHz DC Blocked Protector.Bulkhead mount, single transmitter coaxial lightning protection for 10 MHz to 1 GHz with N female surge side and N female protected side connectors
  • Turn On Voltage
    600 VDC
  • Nominal Insertion Loss
    0.1 dB
  • RF Power
    2000 W to 125 W
  • Manufacturer
    PolyPhaser
