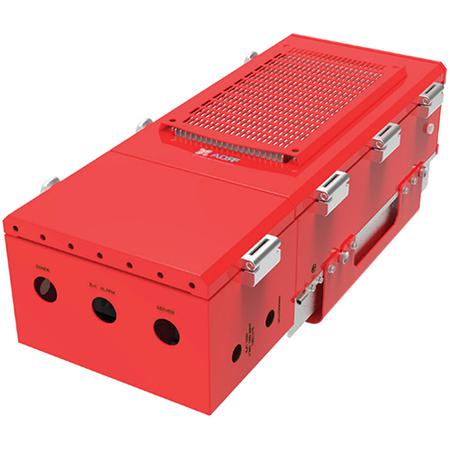

Channelized 0.5 W Digital Repeater for Public Safety 700/800 MHz

ADRF's channelized 0.5-Watt digital repeater for public safety 700/800 MHz. This PSR-78-9533-U1-27 is a revolutionary digital public safety repeater designed to protect the lives of first responders and building occupants. It is is certified to the highest level of code compliance through Underwriters Laboratories and is UL 2524 listed for in-building two-way Emergency Responder Communication Enhancement System (ERCES).

Features:

• UL 2524 Listed Second Edition by Underwriters Laboratories as comprehensive solution with an annunciator and
• ADRF-BBx-U Series battery backups
• NFPA 72-2013, NFPA 1221-2016/2019, NFPA 1225, IFC 2015/2018/2021 code compliant and FirstNet compliant
• Alarming outputs to supervised circuits for Loss of Normal AC Power, Battery Charger Failure, Low Battery Capacity,
• Donor Antenna Malfunction/Disconnection, Active RF Emitting Device Malfunction, and System Component Malfunction
• Supports up to 40 narrowband channels with channelized ALC / AGC per timeslot
• Isolation Check Routine displays isolation value for 700MHz or 800MHz in the GUI
• Oscillation detection feature with automatic amplifier shutdown routine
• Integrated wiring compartment with pre-drilled conduit holes and terminal blocks for easy installation
• NEMA 4 enclosure for both indoor and outdoor environments
• Supports FCC Part 90 Class A narrowband and Class B wideband repeater designations
• Up to 95 dB of gain and up to 27 dBm downlink and 27 dBm uplink output power per band
• Supports P25 Phase 1/Phase 2 analog and digital systems
• UL Sleep Mode to minimize UL noise during low traffic periods
• Software upgradable to 2W via license key (PN: PSR-78-9533-U-27-KEY)
