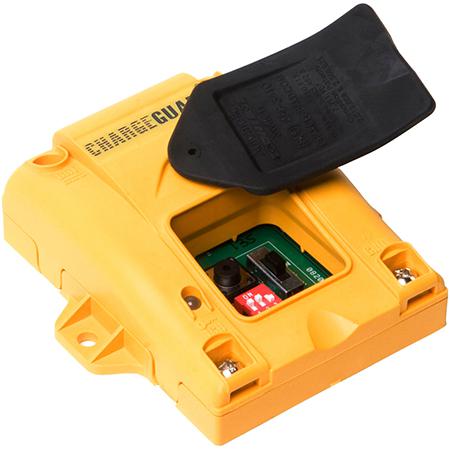

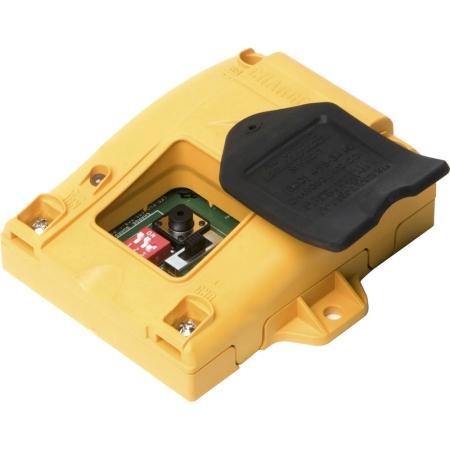

ChargeGuard-Select with Auto Shut-Off Timer

Havis' ChargeGuard-Select is a self-contained unit that provides circuit protection for a vehicle's power system. It prevents dead batteries and is regulated by a programmable timer. An LED indicator displays under and over voltage conditions, helping protect mobile electronics from voltage anomalies.

Specifications:

• Operating Voltage (Normal): 13.8 VDC
• Low Voltage Disconnect: 11 VDC
• High Voltage Disconnect: 18 VDC
• Standby Current: 5 mA
• Operating Current: 80 mA
• Load Current Rating: 30 A
• Minimum On Delay: 5 sec
• Selectable Timeout Delay: 5 sec–18 hr
