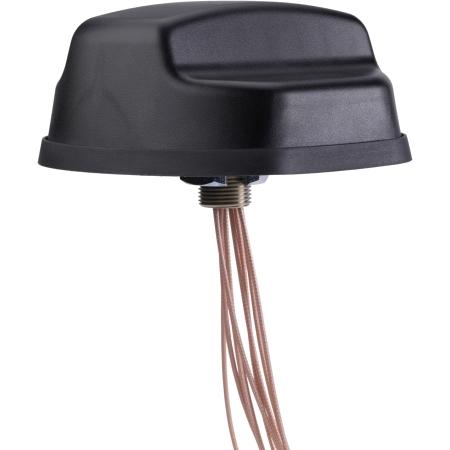

Coach™ II 4-Port LTE/5G, 2-Port Wi-Fi, and 1-Port GNSS Antenna

PCTEL's Coach™ II multiband combination antenna offers a rugged design and is configurable up to 9x1 ports (4x4 Cellular, 4x4 Wi-Fi 7, and GNSS). The Cellular 4x4 MIMO ports cover the LTE/5G sub 6 GHz bands down to 600 MHz. The Wi-Fi 6E 4x4 MIMO port up to 7150 MHz.

This antenna platform can also be equipped with a pre-filtered GNSS antenna.

17-Foot Cables with Connector:

• LTE (All Ports): (Qty 4) 2-foot RG-316 / 15-foot Pro-Flex™ Plus 195 with SMA Male
• Wi-Fi (All Ports): (Qty 2) 2-foot RG-316 / 15-foot Pro-Flex Plus 195 with RPSMA Male
• GNSS: (Qty 1) RG-316 with SMA Male

Features:

• Compatible with the world’s leading multi-carrier cellular routers
• Superior out-of-band rejection
• Easy installation and/or replacement
• Withstands severe environmental conditions

Notes:

• Mount: 1-inch OD, 3/4-inch long (.75-inch) zinc stud with jam nut
• Meets EN 50155:2007 and AAR requirements for ITS rail and roadway applications
