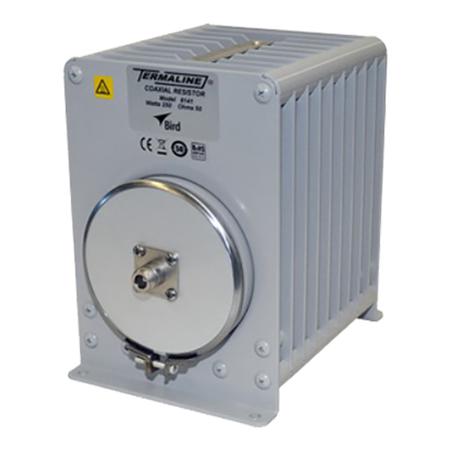

DC -2.5 GHz 250 W Oil-Cooled RF Termination

Bird's 250-Watt oil-coild RF termination. This is a portable, self-contained general purpose 50 Ohm coax transmission line termination. It requires no outside power source or additional equipment. It provides accurate, dependable, and practically non-reflective termination for testing and adjusting transmitters under non-radiating conditions.

The load consists essentially of a cylindrical film type resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor. This produces the uniform, practically reflectionless line termination from DC - 2.5 GHz.

Features:

• Rugged portable bench load for medium power base station RF testing
  • Up to 2.5 GHz
• Oil-assisted convection cooling
  • For safe, continuous operation up to 250-Watt full rated power
• Quick Change (QC) connectors
  • To minimize the need for adaptors when making critical measurements
• Low-profile housing with handle and rubber feet
  • For trouble-free operation in the most demanding environments

Dimensions: 9.6 in x 4 in x 6.5 in
