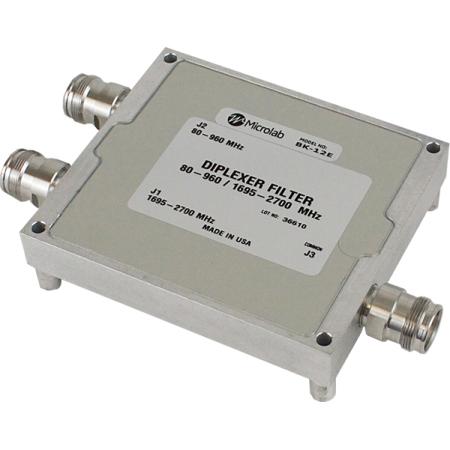

Diplexer Low/High 80-960/ 1695-2700MHz 120W 4.3-10
TESSCO SKU: 581531
UPC: 581531
QTY/UOM: 1/each

MICROLAB's model BK-12 series is a diplexer which allows combination and separation of signals in the 80 – 960 MHz and 1,695 – 2,700 MHz wireless bands. To minimize band interreaction, the inputs are well isolated and have minimal insertion loss over their respective frequency bands. Attention to mechanical design ensures low passive intermodulation. The diplexer is designed using passive, proprietary techniques for low-loss and high reliability. Connectors, spaced to allow controlled wrench tightening, are available with alternate genders. For outdoor environments add the suffix ‘P’ to model no. (e.g. BK-12NP).
