Tripp Lite
DisplayPort-HDMI over Cat5/6 Act Ext Kit,Pig TxRx
TESSCO SKU: 550275
UPC: 037332190116
QTY/UOM: 1/each

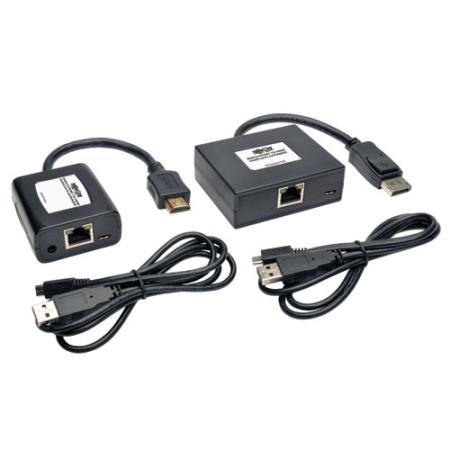

The B150-1A1-HDMI DisplayPort to HDMI over CAT 5/CAT 6 active extender kit includes a transmitter unit and a receiver unit that work in tandem to convert a DisplayPort audio / video signal to HDMI and then extend it to a projector, monitor or television up to 150 ft away. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than convention cables allow. One CAT 5e / CAT 6 cable connects the transmitter and receiver (for best results, use 24 AWG solid-wire CAT 5e / CAT 6 cable, such as Tripp Lite's N202-Series). A built-in DisplayPort cable connects the transmitter to the source, while a built-in HDMI cable connects the receiver to the display. Included USB Micro-B cables connect the transmitter to a USB port on the DisplayPort computer or a USB wall charger (such as Tripp Lite's U280-002-W12), and connect the receiver to a USB port on the HDMI display or a USB wall charger. No external power supplies are needed. The B150-1A1-HDMI can extend a high-definition 1080i (60 Hz) signal up to 150 ft and a 1080p (60 Hz) signal up to 125 ft. In addition to crystal-clear video, including 24-bit True Color (8 bits per channel), the kit delivers full, rich stereo. Green and orange LEDs on both units indicate when they are receiving power from the USB Micro-B cables and sharing a signal. Easy to set up with no software or drivers to install. Works with all operating systems.
