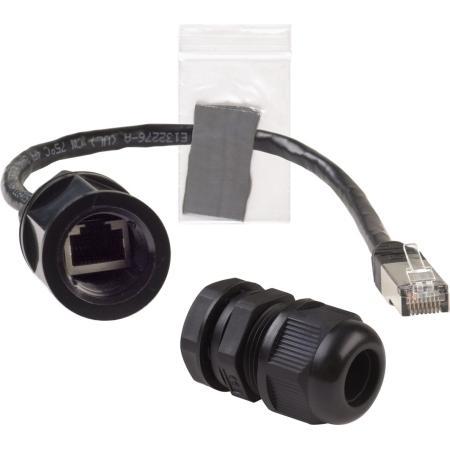

Field Replaceable Outdoor Ethernet Connector System with 12 in Cat 5e Strain Relieved Cable
TE Connectivity's patented RJ45-ECS Ethernet connector system. This system is a field replaceable outdoor rated and shielded Ethernet connection system for high speed 10BaseT, 100BaseT and 1000BaseT networks. It features a shielded RJ45 receptacle mounted in a UV protected housing and a mating cable gland which passes an RJ45 connector and seals the cable to IP67 requirements. The system provides for quick and easy disconnect and reconnect of equipment.
Because of its many unique design features and low cost, the RJ45-ECS is a universal solution for many industries where a sealed and waterproof, yet removable, Ethernet connection is required. The shielded nature of the Cat 5e cable and connectors provide maximum shielding against external EMI for consistent data communications. For modern wireless systems, the quick disconnect feature allows for ready replacement of rooftop equipment, to minimize field time spent servicing customer’s equipment, and minimizing downtime.
Features:
- Patented low cost design
- Field replaceable waterproof connector system for RJ45 shielded or unshielded connectors
- Constructed of UV protective materials for long life in harsh outdoor environments
- Seal meets IP67 criteria
- Shock and vibration resistant
- Positive locking RJ45 connector
- 12 in Cat 5e strain relieved cable
Overall Size (L x Diameter) 3.75 x 1.18 in
