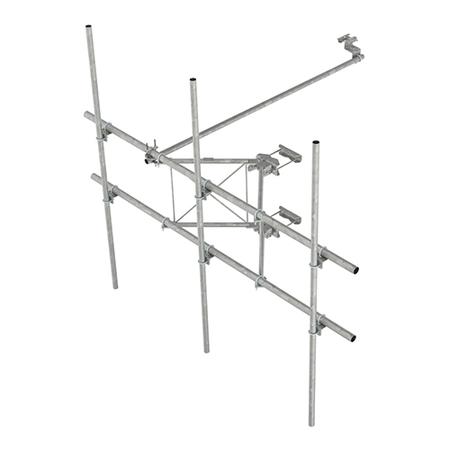

G21HD High Capacity Sector Frame, Includes Three 2.375 in x 96 in OD Antenna Pipes
ANDREW an Amphenol company

G21HD High Capacity Sector Frame, Includes Three 2.375 in x 96 in OD Antenna Pipes

NCNR
TESSCO SKU: 612076
UPC: 612076
QTY/UOM: 1/each
MFG PART #: SFG21HD-12-3-96

ANDREW an Amphenol company's G21HD high capacity sector frame with 2.88-inch OD x 12.5-foot face pipes.

Includes:

  • Frame
  • Pipe mounts
  • (Qty 3) Plain end pipes
    • 2.375-inch OD x 96-inch
  • Stiff arm
  • Tower Attachment

Compliance/Certification:

  • RoHS
  • Designed, manufactured and/or distributed under ISO 9001:2015

Technical Specs

Related Media

G21HD High Capacity Sector Frame SFG21HD-12-3-96 Drawing (PDF)
G21HD High Capacity Sector Frame SFG21HD-12-3-96 Spec Sheet (PDF)
