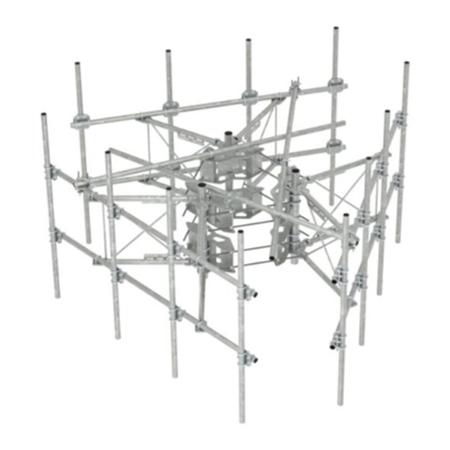

G22 High Capacity 3-Sector Monopole Frame, 10 ft 6 in Face
ANDREW an Amphenol company

G22 High Capacity 3-Sector Monopole Frame, 10 ft 6 in Face

GSA
NCNR
TESSCO SKU: 261695
UPC: 261695
QTY/UOM: 1/each
MFG PART #: MCG22-10M-12-96

ANDREW an Amphenol company's G22 high capacity 3-sector monopole frame with 10-foot 6-inch face.

Includes:

  • Pipe mounts
  • (Qty 12) Plain end pipes
    • 96-inch
  • (Qty 2) Ring mounts
  • (Qty 3) Sector frames
  • Stiff arm

Compliance/Certification:

  • RoHS
  • Designed, manufactured and/or distributed under ISO 9001:2015

Technical Specs

Related Media

G22 High Capacity 3-Sector Monopole Frame MCG22-10M-12-96 Spec Sheet (PDF)
G22 High Capacity 3-Sector Monopole Frame MCG22-10M-12-96 Drawing (PDF)
